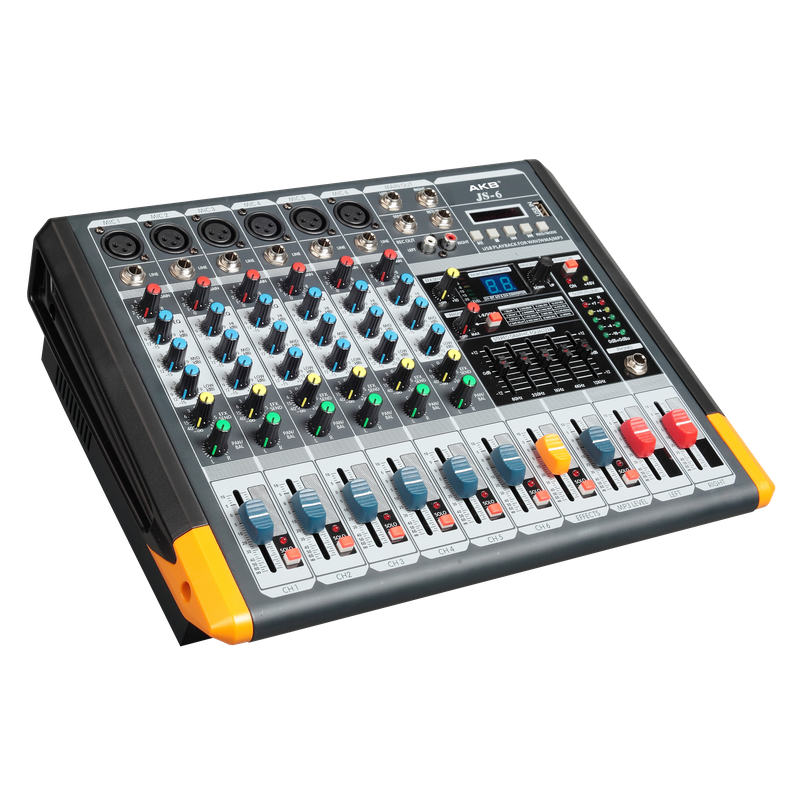

JS-6D
AKB
Main fuction:
One Group AUX output and return.
High Precision 45mm long life fader.
With 16 DSP Digital effects
Dual 5 band EQ
It is independent listen each channel Recording and
headphone listen output .
High quality With MP3 player.
+48V Phantom power.
Technical Specification:
Channel MIC/LINE:8
Main BUS: 1 Stereo,
Channel EQ: 3 Band
Total Harmonic Distortion:≤0.05%
Frequency Response:18Hz~18KHz
S/N Ratio:≥103dB
Max Outputs:4V Max
input Sensitivity:Mic-50dB
Line-40dB
Input EQ:HI±15dB/12KHz
MID±15dB/2.5KHz
LOW±15dB/80Hz
Output Power: 4Ω 2/150W
Main fuction:
One Group AUX output and return.
High Precision 45mm long life fader.
With 16 DSP Digital effects
Dual 5 band EQ
It is independent listen each channel Recording and
headphone listen output .
High quality With MP3 player.
+48V Phantom power.
Technical Specification:
Channel MIC/LINE:8
Main BUS: 1 Stereo,
Channel EQ: 3 Band
Total Harmonic Distortion:≤0.05%
Frequency Response:18Hz~18KHz
S/N Ratio:≥103dB
Max Outputs:4V Max
input Sensitivity:Mic-50dB
Line-40dB
Input EQ:HI±15dB/12KHz
MID±15dB/2.5KHz
LOW±15dB/80Hz
Output Power: 4Ω 2/150W
