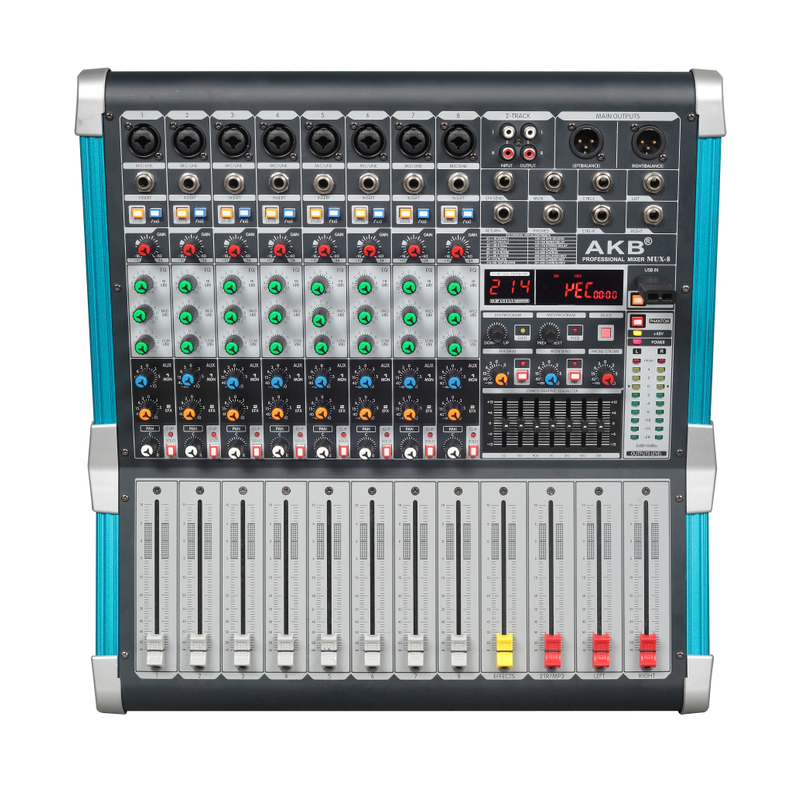

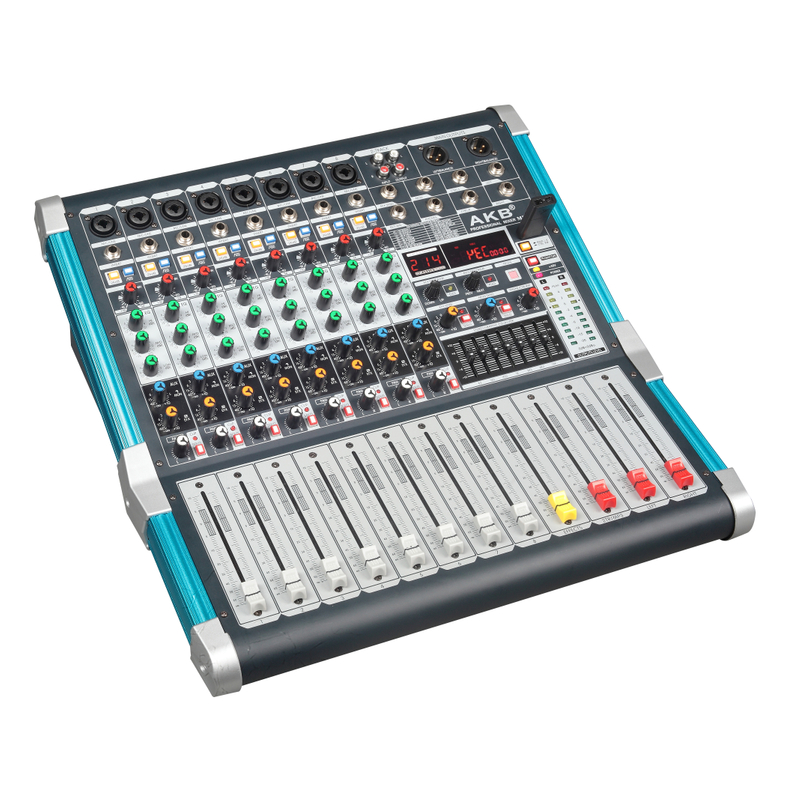

MUX-8 Mixer

Main fuction:
Four Group AUX output and Two Group return.
High Precision 100mm long life fader.
With 256 DSP Digital effects
Recording and headphone listen output.
Each channel set a breakpoint function
With MP3 player,PC audio and Bluetooth player
Dual 7 band EQ
+48V Phantom power.
Technical Specification:
Channel MIC/LINE:8
Total Harmonic Distortion:≤0.05%
Frequency Response:18Hz～18KHz
S/N Ratio:≥-103dB
Max Outputs:4V Max
input Sensitivity:Mic-60dB
Line-34dB
Input EQ:HI±15dB/12KHz
MID±15dB/2.5KHz
LOW±15dB/80Hz
PAD:26dB
High Pass Filter:100Hz
Power:350W*2
