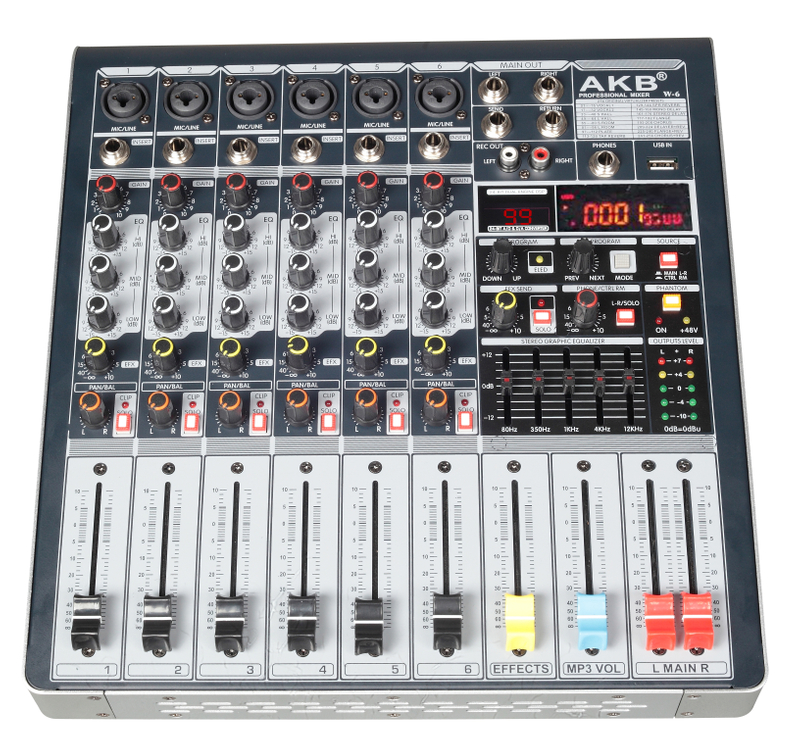

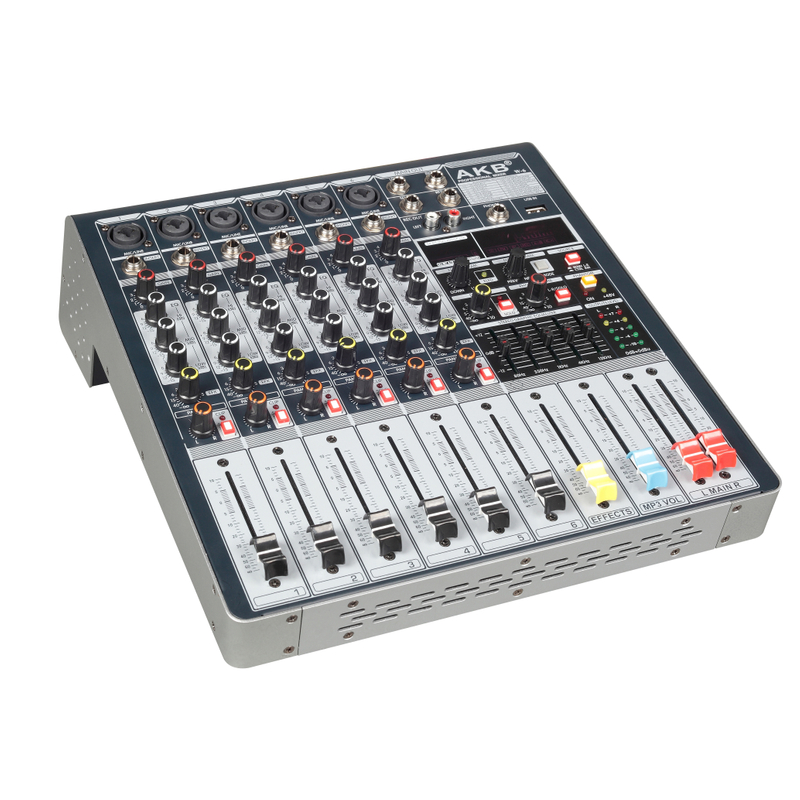

W-6 Mixer

Main fuction:
One Group AUX output and One Group return.
High Precision 60mm long life fader.
With 256 DSP Digital effects
Dual 5 band EQ
It is independent recording and headphone listen output for each channel
stand by:
USB flash drive, Bluetooth audio and PC sound
+48V Phantom power.
Availability:
Quantity:
  • W-6

  • AKB

Main fuction:

One Group AUX output and   One Group return.

High Precision 60mm long life fader.

With 256 DSP Digital effects

Dual 5 band EQ

It is independent recording  and headphone listen output for each channel

stand by:

USB flash drive, Bluetooth audio and PC sound

+48V Phantom power.

Technical Specification:

Channel MIC/LINE:6

Total Harmonic Distortion:≤0.05%

Frequency Response:20Hz~18KHz

S/N Ratio:≥90dB

Max Outputs:4V Max

input Sensitivity:Mic-50dB

                  Line-40dB

Input EQ:HI±15dB/12KHz

         MID±15dB/2.5KHz

         LOW±15dB/80Hz
