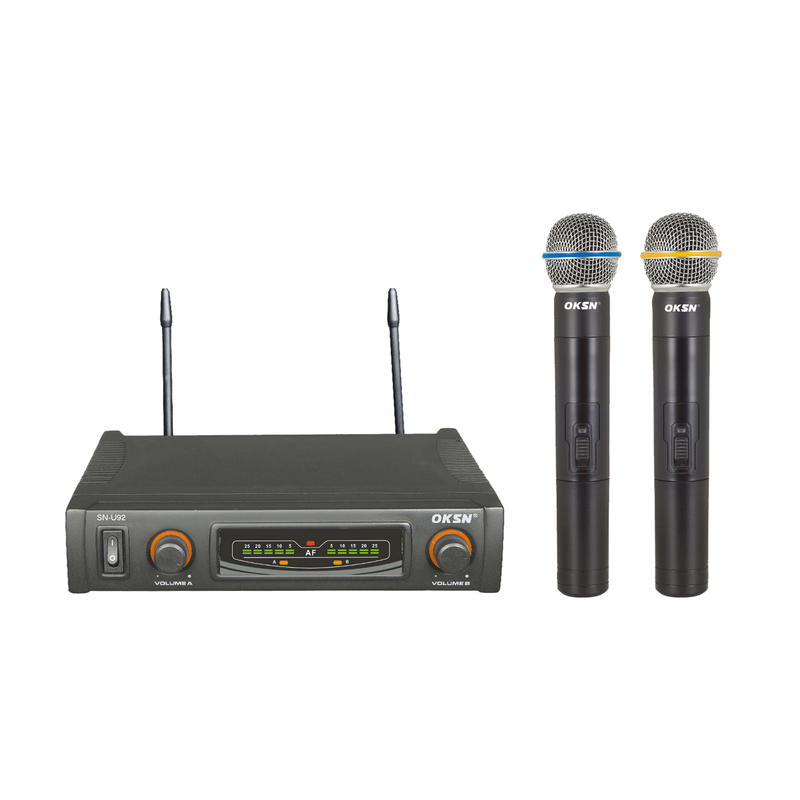

SN-U92
OKSN
Frequency range:740.00-865.00MHz
Frequency stability:±0.003%
Audio Dynamic range:>105dB
T.H.D:<0.5%
Frequency response:40Hz-18KH
Output plug:XLR balance, 1/4" unbalance plug
output voltage: 1/4" 0-500mV
XLR:0-500mV
Cover range:60M
Operation temperature:-10℃--+50℃
Transmitter specification:
RF output power:≤10mW
Modulation mode:FM
Max modulation frequency:±48KHz
Power:AA 1.5 X2
Battery life:8 hours
Receiver:
Antenna jack:TNC 50Ω
Rated power:6.5W
S/N.:>103dB(1 KHz-A)
mirror frequency rejection:>110dB
suprious reduction:>90dB
RF sensitivity:-105dBm
Channels:dual channels
Power voltage:DC 12-18V,power adapter
Packing:color box
Frequency range:740.00-865.00MHz
Frequency stability:±0.003%
Audio Dynamic range:>105dB
T.H.D:<0.5%
Frequency response:40Hz-18KH
Output plug:XLR balance, 1/4" unbalance plug
output voltage: 1/4" 0-500mV
XLR:0-500mV
Cover range:60M
Operation temperature:-10℃--+50℃
Transmitter specification:
RF output power:≤10mW
Modulation mode:FM
Max modulation frequency:±48KHz
Power:AA 1.5 X2
Battery life:8 hours
Receiver:
Antenna jack:TNC 50Ω
Rated power:6.5W
S/N.:>103dB(1 KHz-A)
mirror frequency rejection:>110dB
suprious reduction:>90dB
RF sensitivity:-105dBm
Channels:dual channels
Power voltage:DC 12-18V,power adapter
Packing:color box
