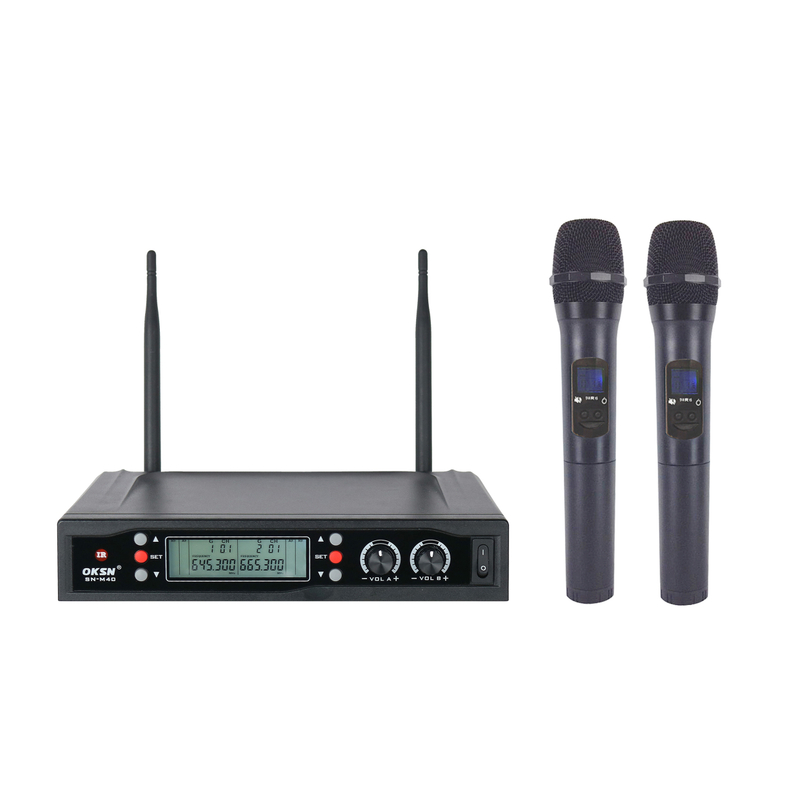

SN-M40 UHF Wireless Microphone

Frequency range:UHF600-800MHz
Frequency stability:±0.003%
Audio dynamic range:>100dB
T.H.D:＜0.5%
Frequency response:50Hz-18KHz
Output plug:XLR balance, 1/4" unbalance plug
output voltage: 1/4" 0-500mV
XLR:0-500mV
Cover range:50M
Operation temperature:-10℃--＋50℃
Receiver:
Antenna jack:TNC50Ω
Rated power:6.5W
S/N.:>100dB(1KHz-A)
mirror frequency rejection:>110dB
spurious reduction:>90dB
RF sensitivity:-105dBm
Channels:two channels
Power voltage:DC12-18V,power adapter
Transmitter specification:
RF output power:≤10mW
Modulation mode:FM
Maximum frequency deviation:75KHz
Power:AA1.5×2
Battery life:8 hours
Availability:
Quantity:
Inquire Add to Basket

SN-M40 UHF Wireless Microphone

  • SN-M40

  • OKSN

Frequency range:UHF600-800MHz

Frequency stability:±0.003%

Audio dynamic range:>100dB

T.H.D:＜0.5%

Frequency response:50Hz-18KHz

Output plug:XLR balance, 1/4" unbalance plug

output voltage: 1/4" 0-500mV

XLR:0-500mV

Cover range:50M

Operation temperature:-10℃--＋50℃

Receiver:

Antenna jack:TNC50Ω

Rated power:6.5W

S/N.:>100dB(1KHz-A)

mirror frequency rejection:>110dB

spurious reduction:>90dB

RF sensitivity:-105dBm

Channels:two channels

Power voltage:DC12-18V,power adapter

Transmitter specification:

RF output power:≤10mW

Modulation mode:FM

Maximum frequency deviation:75KHz

Power:AA1.5×2

Battery life:8 hours
