Ever wondered what gives a microphone its unique voice? It's not the fancy grille or the sleek body. The true magic happens inside a tiny, powerful component: the microphone cartridge. This small but mighty part is the heart of any microphone, responsible for capturing sound waves and converting them into the electrical signals we can record, amplify, and broadcast.
Understanding the microphone cartridge is essential for anyone serious about audio, from podcasters and musicians to sound engineers and content creators. Choosing the right one can be the difference between a muddy, lifeless recording and a crisp, vibrant one. It dictates the microphone's sensitivity, frequency response, and overall character.
This guide will walk you through everything you need to know about microphone cartridges. We'll explore how they work, the different types available, and what to look for when choosing one for your specific needs. By the end, you'll have a clear understanding of why this component is so crucial and how to make it work for you.
A microphone cartridge, also known as a capsule or element, is the transducer component within a microphone. Its primary job is to convert acoustic energy (sound waves) into an electrical signal. Think of it as the microphone's ear. When sound waves hit the cartridge's diaphragm—a thin, sensitive membrane—it vibrates. The cartridge then translates these vibrations into an electrical voltage that mirrors the original sound's pattern.
The design and materials used in a microphone cartridge determine most of the microphone's key characteristics, including:
◎Frequency Response: The range of frequencies the microphone can capture, from low bass to high treble.
◎Polar Pattern: The direction(s) from which the microphone picks up sound most effectively (e.g., cardioid, omnidirectional).
◎Sensitivity: How well the microphone converts sound into an electrical signal. A more sensitive mic needs less amplification.
◎Sound Signature: The unique tonal quality or "color" the microphone imparts on the sound.
Because it plays such a foundational role, the quality of the microphone cartridge directly impacts the final audio output. A high-quality cartridge will capture sound with accuracy and detail, while a lower-quality one might produce a distorted or unclear signal.
Microphone cartridges are primarily categorized by their operating principle—the method they use to convert sound into an electrical signal. The two most common types are dynamic and condenser.

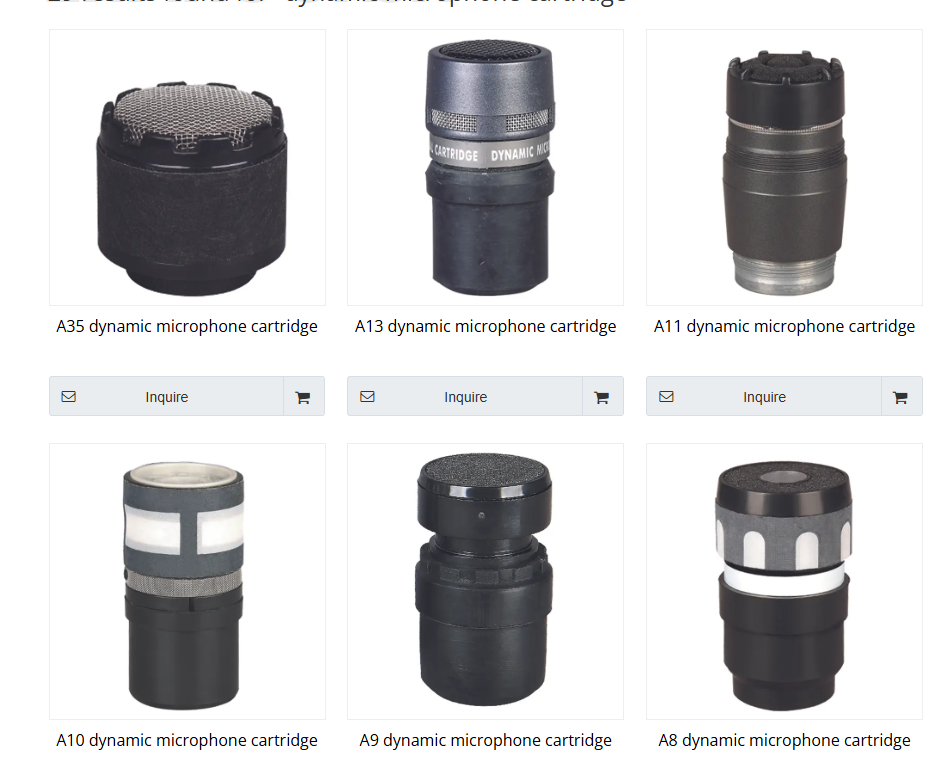

Dynamic microphone cartridges are known for their durability and ability to handle high sound pressure levels (SPL). They work on the principle of electromagnetic induction, similar to a speaker in reverse.
How They Work: Inside a dynamic cartridge, a wire coil is attached to the diaphragm. This coil is suspended within a magnetic field created by a permanent magnet. When sound waves cause the diaphragm to vibrate, the coil moves back and forth within the magnetic field, generating a small electrical current. This current is the audio signal.
Key Characteristics:
◎Robust: They are built to withstand rough handling and loud environments, making them a favorite for live performances and miking loud instruments like drums and guitar amps.
◎Less Sensitive: They are generally less sensitive than condenser mics, which helps in isolating the intended sound source and reducing background noise.
◎No External Power Needed: They are passive devices and do not require phantom power to operate.
◎Common Uses: Live vocals, public address (PA) systems, broadcasting, and recording high-SPL instruments. The classic Shure SM58 is a prime example of a microphone built around a reliable dynamic cartridge.
Condenser microphone cartridges are prized for their sensitivity and ability to capture fine details and nuances in sound. They operate on an electrostatic principle.
How They Work: A condenser cartridge consists of a thin, conductive diaphragm placed close to a solid metal backplate. This arrangement forms a capacitor (historically called a condenser). An electrical charge is applied to the plates. When sound waves hit the diaphragm, it vibrates, changing the distance between it and the backplate. This variation in distance alters the capacitance, producing an electrical signal that corresponds to the sound.
Key Characteristics:
◎Highly Sensitive: They can pick up subtle sounds with exceptional clarity and accuracy, making them ideal for studio recording.
◎Wide Frequency Response: They often capture a broader range of frequencies, especially in the higher end, resulting in a detailed and "airy" sound.
◎Requires Power: Condenser mics need an external power source, known as phantom power (+48V), to charge the capacitor plates and power the internal preamplifier.
◎Common Uses: Studio vocals, acoustic instruments, overhead drum miking, and any application where detail and fidelity are paramount.
While dynamic and condenser cartridges dominate the market, other types are used for specific applications.
A subtype of dynamic microphones, ribbon cartridges use an extremely thin, corrugated ribbon of conductive material (usually aluminum) suspended between the poles of a magnet. They are known for their warm, vintage sound but are much more fragile than standard dynamic mics.
Electret cartridges are a type of condenser mic that uses a permanently charged material for the backplate or diaphragm, eliminating the need for a high-voltage power supply. They still require a small battery or low-level phantom power for their internal preamp. These are commonly found in small devices like smartphones, laptops, and lavalier mics.
Since the cartridge is usually a fixed part of a microphone, choosing the right cartridge means choosing the right microphone. Here are the key factors to consider:
1.Your Sound Source: What are you recording? For loud sources like drum kits or electric guitar amps, a dynamic microphone is a safe bet. For detailed vocals, acoustic guitars, or pianos, a condenser microphone will capture the nuances you want.
2.Your Recording Environment: Are you in a treated studio or an untreated room? A less-sensitive dynamic mic can help minimize background noise and room reflections. A highly sensitive condenser mic will pick up everything, so it performs best in a quiet, controlled environment.
3.Durability and Handling: If the microphone will be used on stage or for field recording, the ruggedness of a dynamic microphone is a major advantage. Delicate condenser and ribbon mics are better suited for the stability of a studio.
4.Power Requirements: Do you have an audio interface or mixer that can supply +48V phantom power? If not, you'll be limited to dynamic microphones or electret condensers that use batteries.
Can I replace or upgrade my microphone cartridge?
In some microphones, especially certain modular systems or high-end models, the cartridge (or capsule) can be unscrewed and replaced. This allows you to change the microphone's polar pattern or tonal character. However, for most standard microphones, the cartridge is an integrated component and is not designed to be user-replaceable. Attempting to do so can damage the microphone.
Do microphone cartridges wear out?
Yes, over time and with use, microphone cartridges can degrade. The diaphragm can lose its tension, moisture can affect condenser capsules, and physical shocks can damage the internal components. A well-maintained microphone from a reputable brand can last for decades, but performance may eventually decline.
What is the difference between a large-diaphragm and a small-diaphragm condenser?
The diaphragm size in a condenser microphone cartridge affects its performance. Large-diaphragm mics (typically one inch or more) are known for their low self-noise and warm, full-bodied sound, making them popular for vocals. Small-diaphragm mics are often more accurate in capturing transients (quick, sharp sounds) and have a more consistent polar pattern, making them great for acoustic instruments and stereo miking.
The microphone cartridge is far more than just another component; it is the starting point of your audio signal chain and the element that defines your microphone's character. Whether you need the rugged reliability of a dynamic cartridge for the stage or the detailed clarity of a condenser for the studio, understanding how they work is the first step toward capturing better sound.
Next time you choose a microphone, look beyond the brand and model number. Consider the technology inside—the microphone cartridge—and match it to your specific needs. By focusing on the heart of the microphone, you empower yourself to make more informed decisions and ultimately create recordings that are clear, professional, and true to your vision.
