PJS8FX audio mixer console
You are here: Home » Hot Products » Professional Mixer » PJS8FX audio mixer console
Share to:

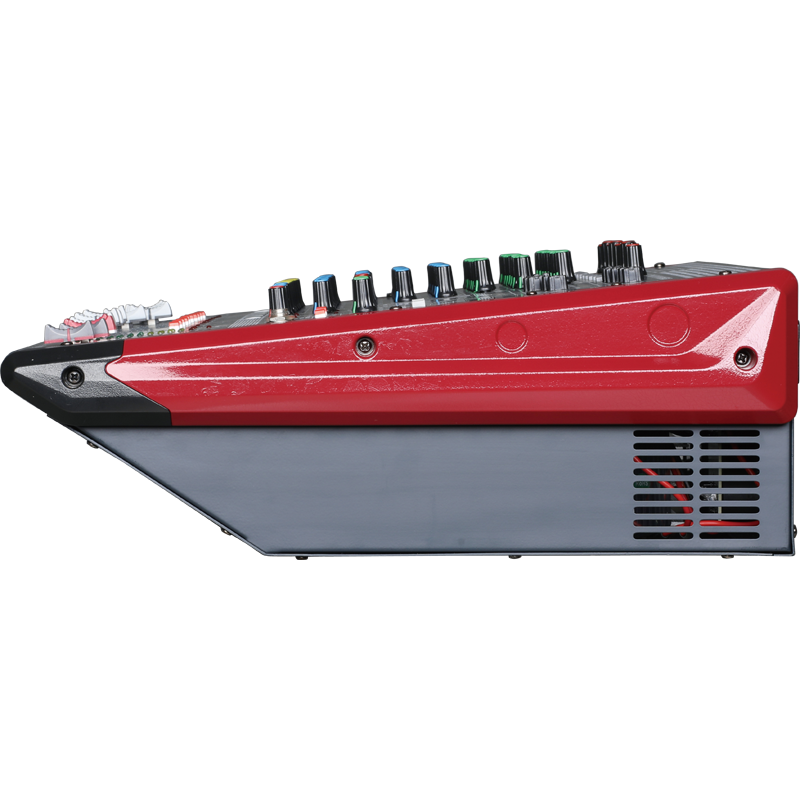

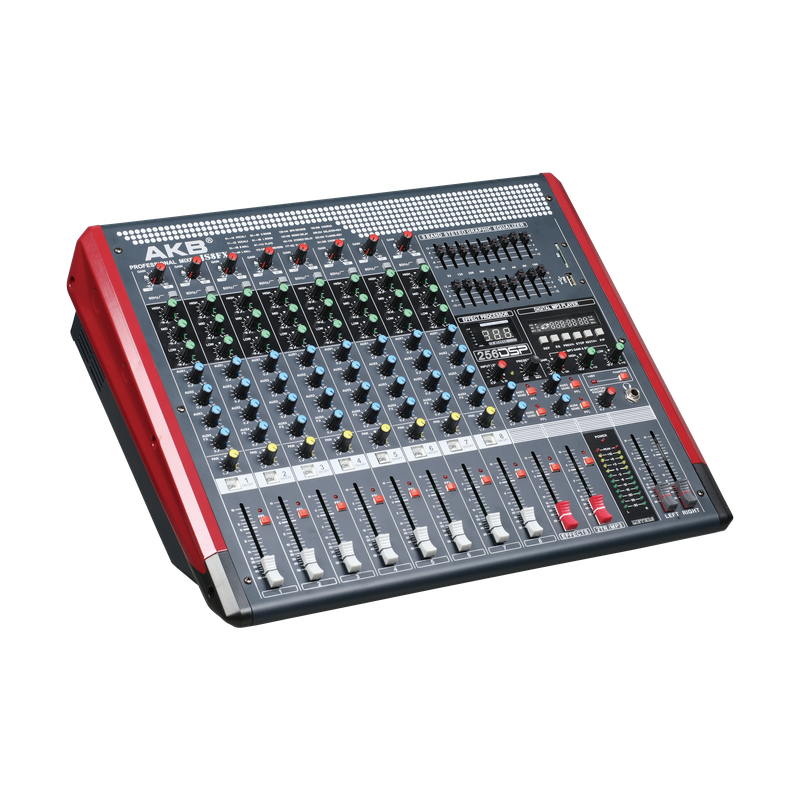

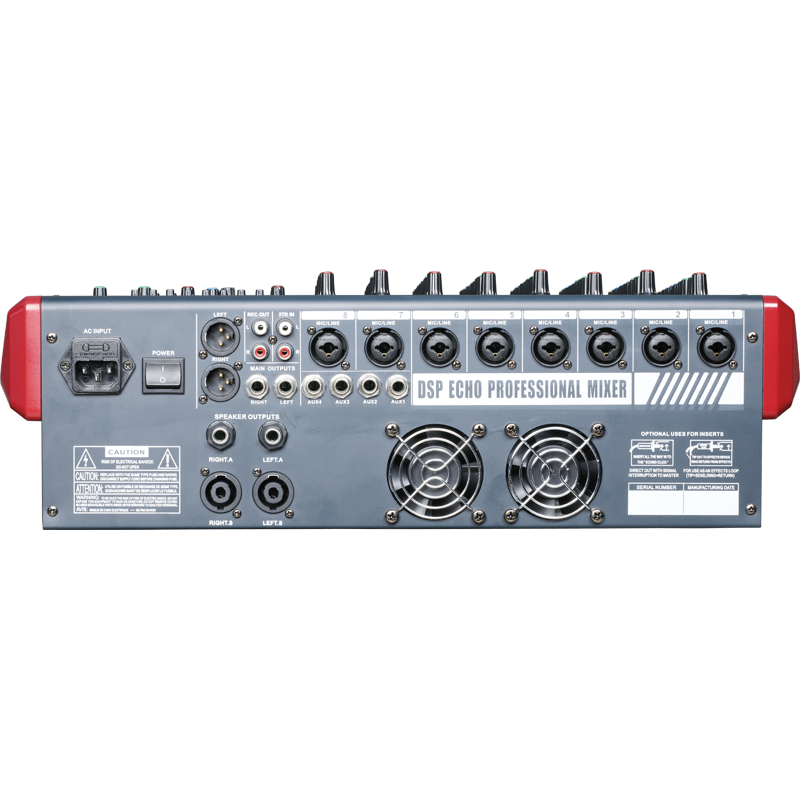

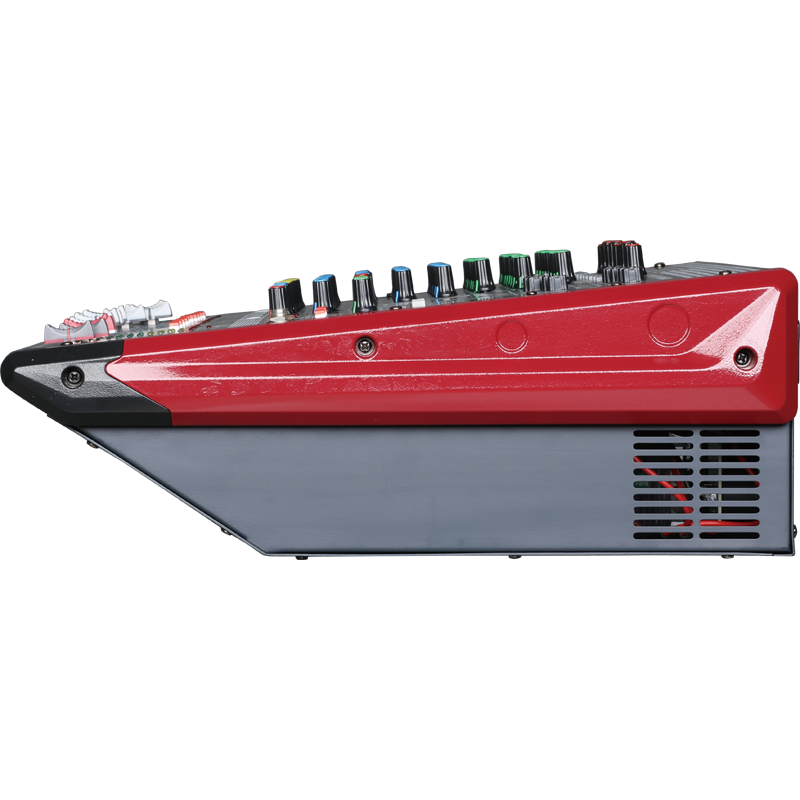

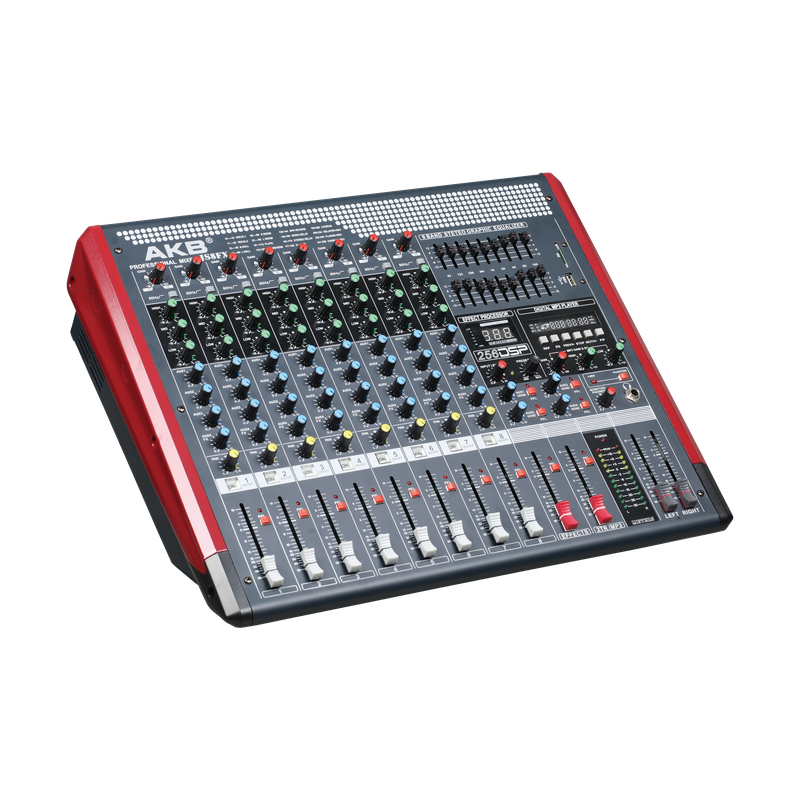

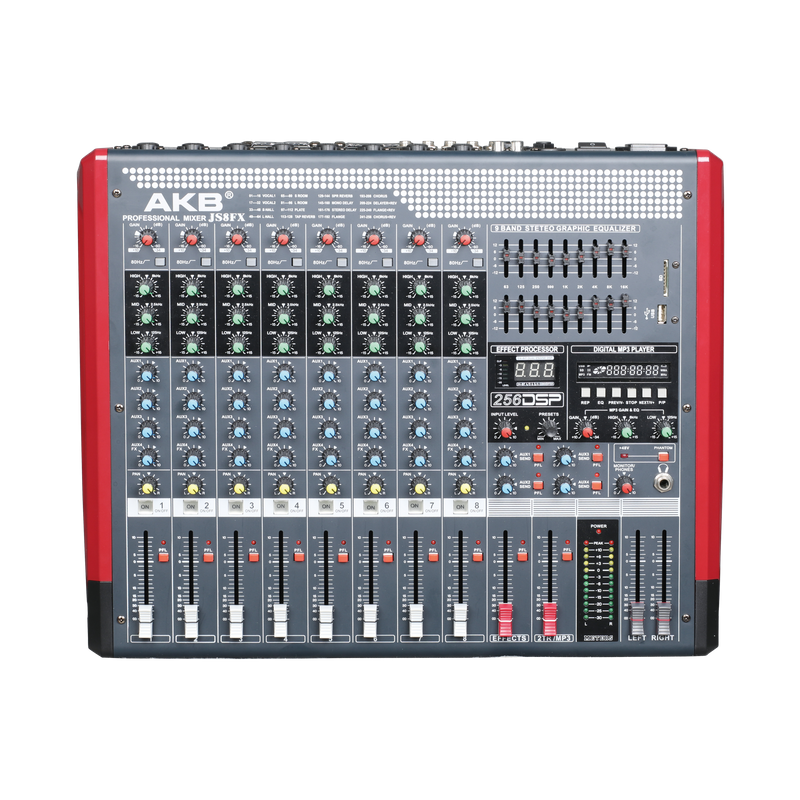

PJS8FX audio mixer console

Main fuction:
Two Group AUX output and One Group return.
High Precision 60mm long life fader.
With 256 DSP Digital effects
Dual Seven sections main control EQ
It is independent listen each channel Recording and
headphone listen output .
High quality With MP3 player.
+48V Phantom power.
Technical Specification:
Channel MIC/LINE:8
Main BUS: 1 Stereo,
Channel EQ: 4 Band
Total Harmonic Distortion:≤0.05%
Frequency Response:15Hz~22KHz
S/N Ratio:≥95dB
Max Outputs:4V Max
input Sensitivity:Mic-60dB
Line-40dB
Input EQ:HI±15dB/12KHz
MID±15dB/2.5KHz
LOW±15dB/80Hz
Output Power:4Ω 2/350W

Quantity:
  • PJS8FX
  • AKB

Main fuction:

Two Group AUX output and One Group return.

High Precision 60mm long life fader.

With 256 DSP Digital effects

Dual Seven sections main control EQ

It is independent listen each channel Recording and

headphone listen output .

High quality With MP3 player.

+48V Phantom power.

Technical Specification:

Channel MIC/LINE:8

Main BUS: 1 Stereo,

Channel EQ: 4 Band

Total Harmonic Distortion:≤0.05%

Frequency Response:15Hz~22KHz

S/N Ratio:≥95dB

Max Outputs:4V Max

input Sensitivity:Mic-60dB

Line-40dB

Input EQ:HI±15dB/12KHz

MID±15dB/2.5KHz

LOW±15dB/80Hz

Output Power:4Ω 2/350W
