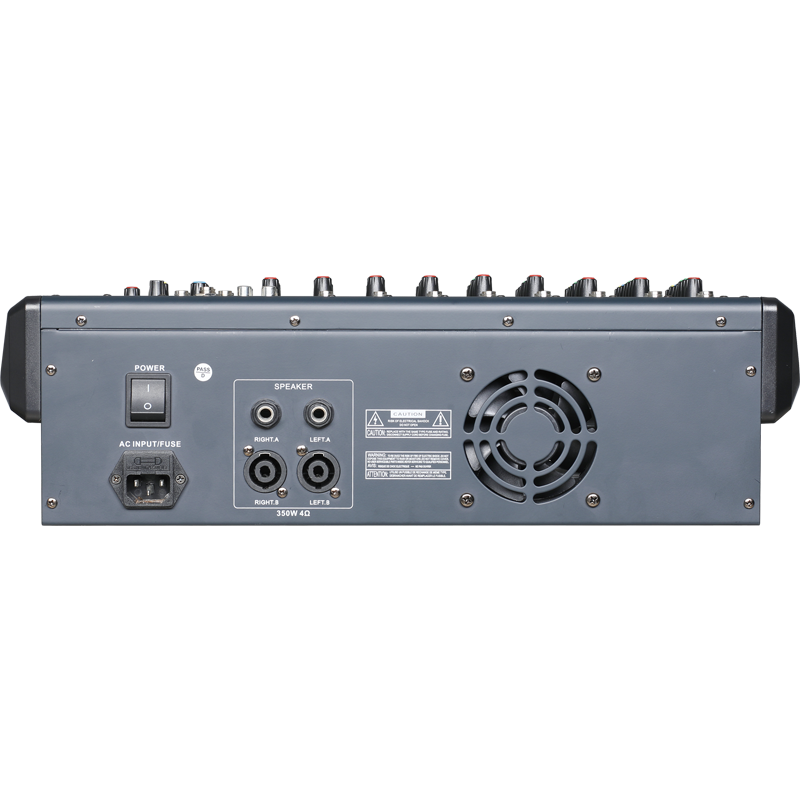

DZ-860 professional audio video mixer

Main fuction:
+48 v power supply and phantom power supply with
independent switch.
8 input channels can be used for the microphone
connection, and also can be used to connect line level
equipment. And provide 2 line level stereo input channel.
each input can be high, medium, bass, reverberation,
auxiliary, and earphone monitoring independent regulation
every signal channel has a LED light switch button,
can see the working state of each signal channel clearly
built-in advanced digital effects processors
"high quality MP3 player with LCD display"
Technical Specification:
Total Harmonic Distortion:≤0.03%
Frequency Response:10Hz~30kHz
S/N Ratio:≥95dB
Max Outputs:8V
Input Sensitivity:Mic-60dB
Line-44dB
Input EQ:HI±15dB/16KHz
MID±15dB/2.5KHz
LOW±15dB/60Hz
Output Power:4Ω 2/350W

Quantity:
  • DZ-860
  • AKB

Main fuction:

+48 v power supply and phantom power supply with

independent switch.

8 input channels can be used for the microphone

connection, and also can be used to connect line level

equipment. And provide 2 line level stereo input channel.

each input can be high, medium, bass, reverberation,

auxiliary, and earphone monitoring independent regulation

every signal channel has a LED light switch button,

can see the working state of each signal channel clearly

built-in advanced digital effects processors

"high quality MP3 player with LCD display"

Technical Specification:

Total Harmonic Distortion:≤0.03%

Frequency Response:10Hz~30kHz

S/N Ratio:≥95dB

Max Outputs:8V

Input Sensitivity:Mic-60dB

Line-44dB

Input EQ:HI±15dB/16KHz

MID±15dB/2.5KHz

LOW±15dB/60Hz

Output Power:4Ω 2/350W
